SurgiTel | LED Headlights | Dental Loupes with Light | Surgical Headlight

Ergo Vision Headlights

Blue light is not healthy yet many clinicians are using blue-tinted LEDs, even though they were advertised as true color.

Third party evaluations have determined SurgiTel LEDs have the safest color temperate starting at 3,000 Kelvin(K) while other brands range from 5,400K to 10,000K.

Other benefits of Eye Safe, True Colored dental lights and surgical lights include minimized eye-strain and best color accuracy.

Read Our Articles on LED Headlights

Benefits of our Headlights

  • Superior edge to edge beam uniformity and color accuracy
  • Patented optics create superior beam quality
  • Color options to adapt to your work
  • Smallest and lightest LED headlight
  • Lithium battery pack provides light for 8 hours with the Odyssey LED headlights and up to 12 hours with the Surgical LED at max brightness
  • Adjustable brightness knob
  • Fits on SurgiTel and other telescopes, frames, or headbands
  • Optimal color balance provides true colors and reduces eye strain
  • Coaxial design produces shadowless work space

Click here to read the Clinician Report about the SurgiTel Cordless Headlight.

SurgiTel LED Headlights

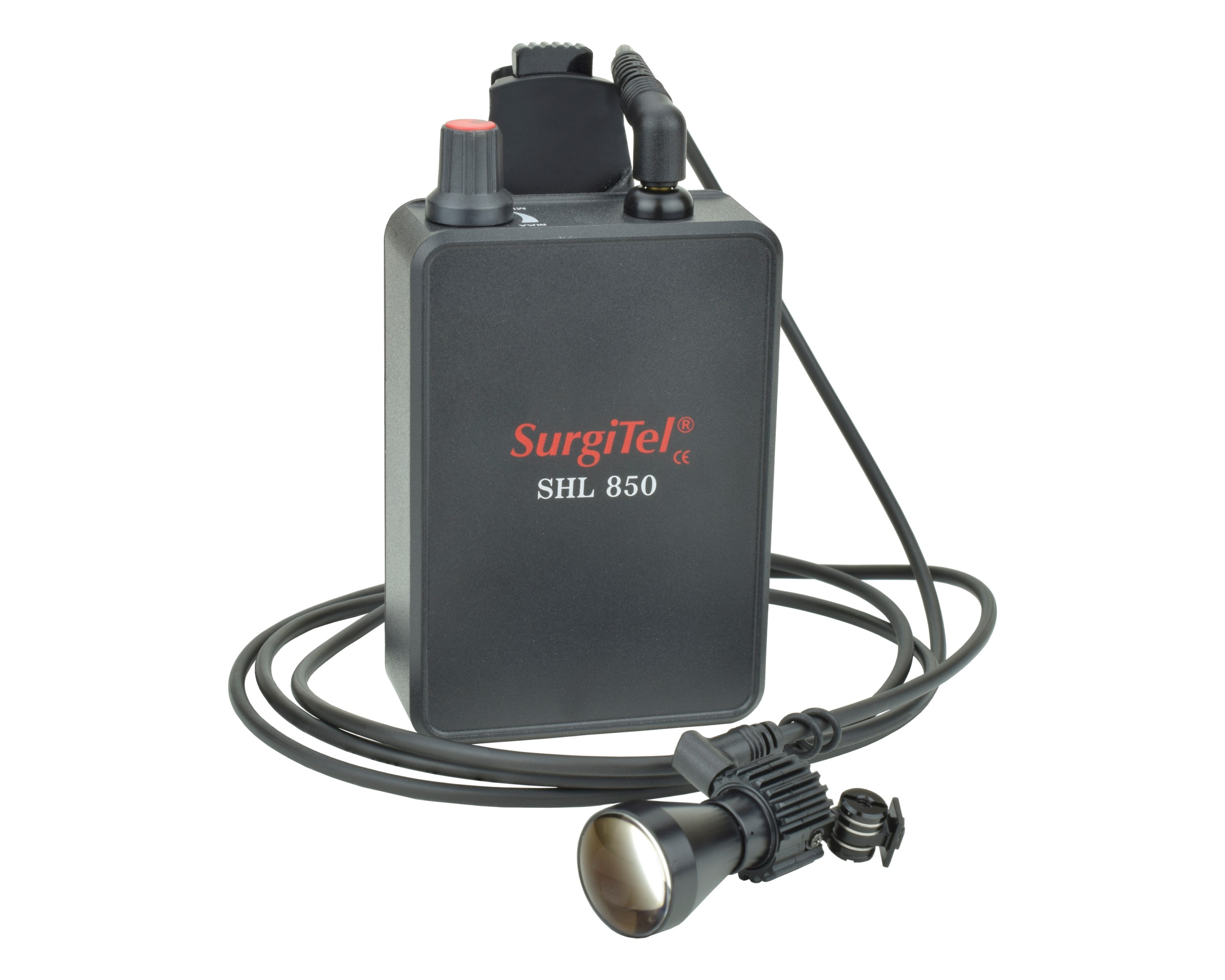

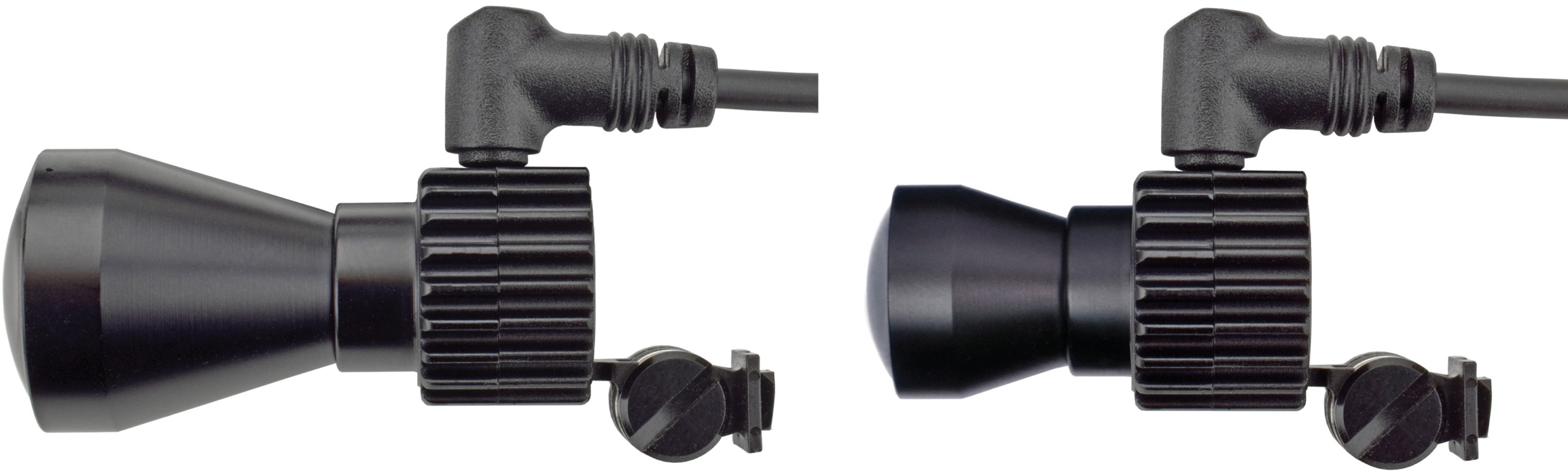

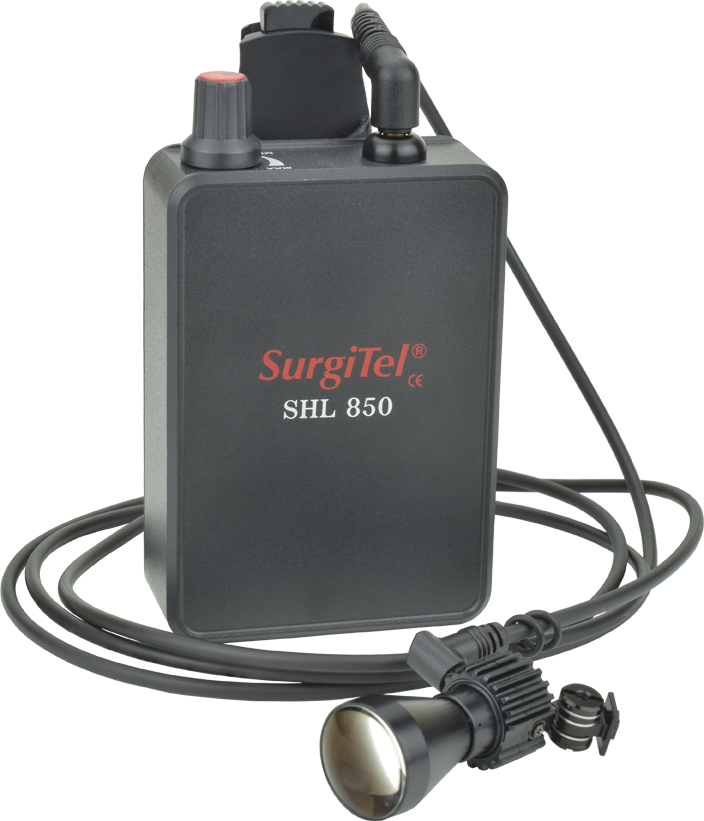

Surgical Mini LED and Surgical Micro LED

The Surgical Mini LED and Surgical Micro LED are a modern update of the traditional surgical headlight used in many hospital environments. Our first loupe-mounted medical LED headlight.

The Surgical Mini LED and Surgical Micro LED combines the power of traditional surgical headlights with the color balance and uniformity of advanced LED technology.

  • Lightweight yet bright at 14.6 grams and 100,000 Lux for the Mini and 10.4 grams and 65,000 Lux for the Micro
  • The eye-safe Neutral color LED is ideal for Dental professionals and clinicians that may prefer a color balanced light
  • The Cool color LED is ideal for Surgeons and helps to enhance anatomical features
  • Up to 12 hours of battery life with advanced battery technology
  • Replaceable battery cells for low maintenance costs
  • Uniform beam with multi-lens optics (patented)
  • Polarizing filters also available to reduce glare
  • Orange curing filter is included with Micro optic and is available upon request with the Mini optic
  • No color change over the working distance range
  • Our first loupe-mounted medical LED headlight
  • Loupe or Headband style mounting is available
  • The heatsink around the LED body promotes effective heat dissipation

Surgical Mini LED and Surgical Micro LED Specs

Brightness (average): 100,000 Lux (Mini) | 65,000 (Micro)
Spot Size (at 20″): 4.5″ (11.4cm) Diameter (Mini)
5.25″ (13.3cm) Diameter (Micro)
Battery Life: Up to 12 hours at max brightness
LED Life (average): Up to 10,000 hours or over 5 years
Color Temperature: 4,000K (neutral) | 5,700K (cool)

Kelvin Temperature Scale

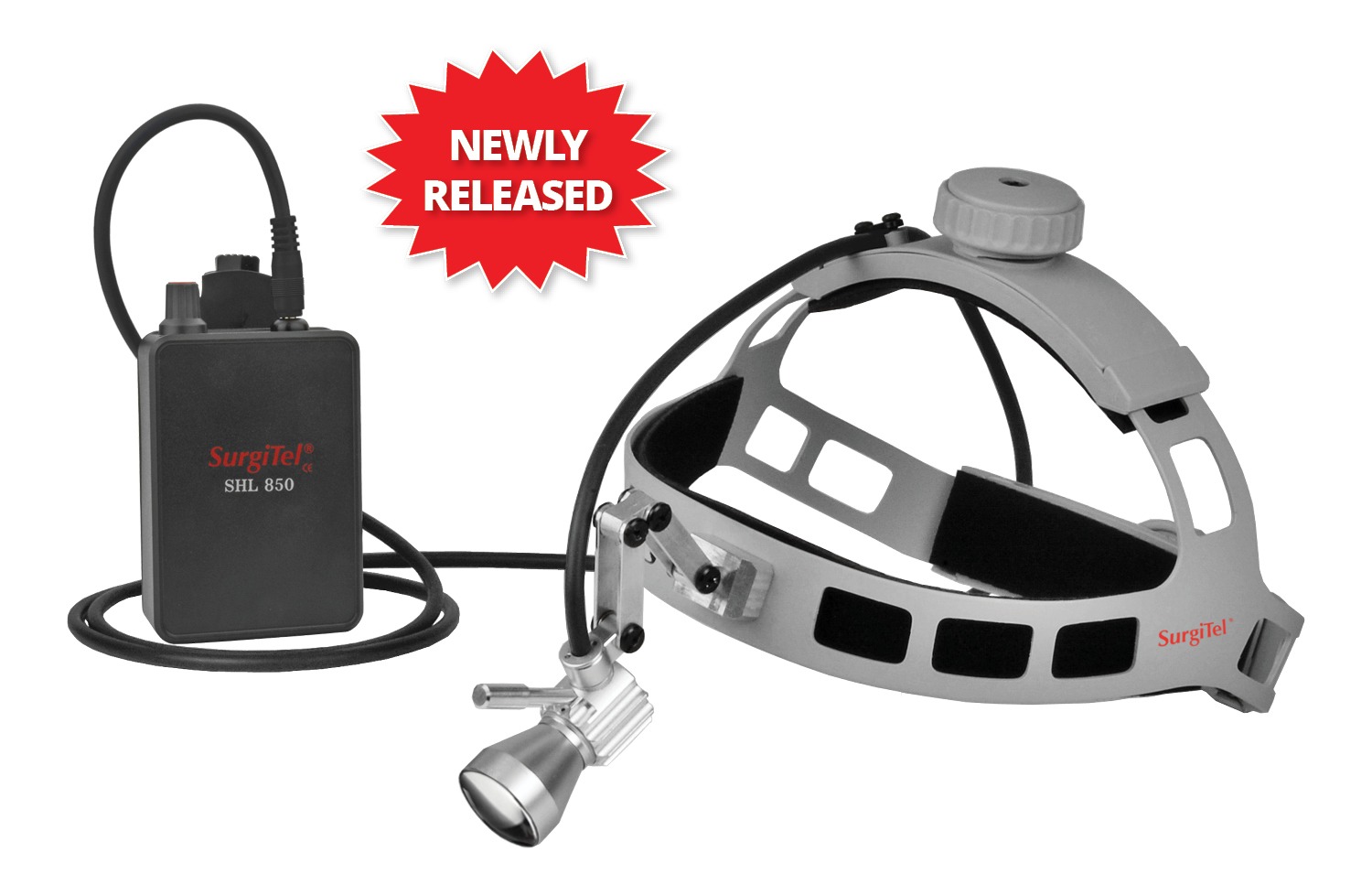

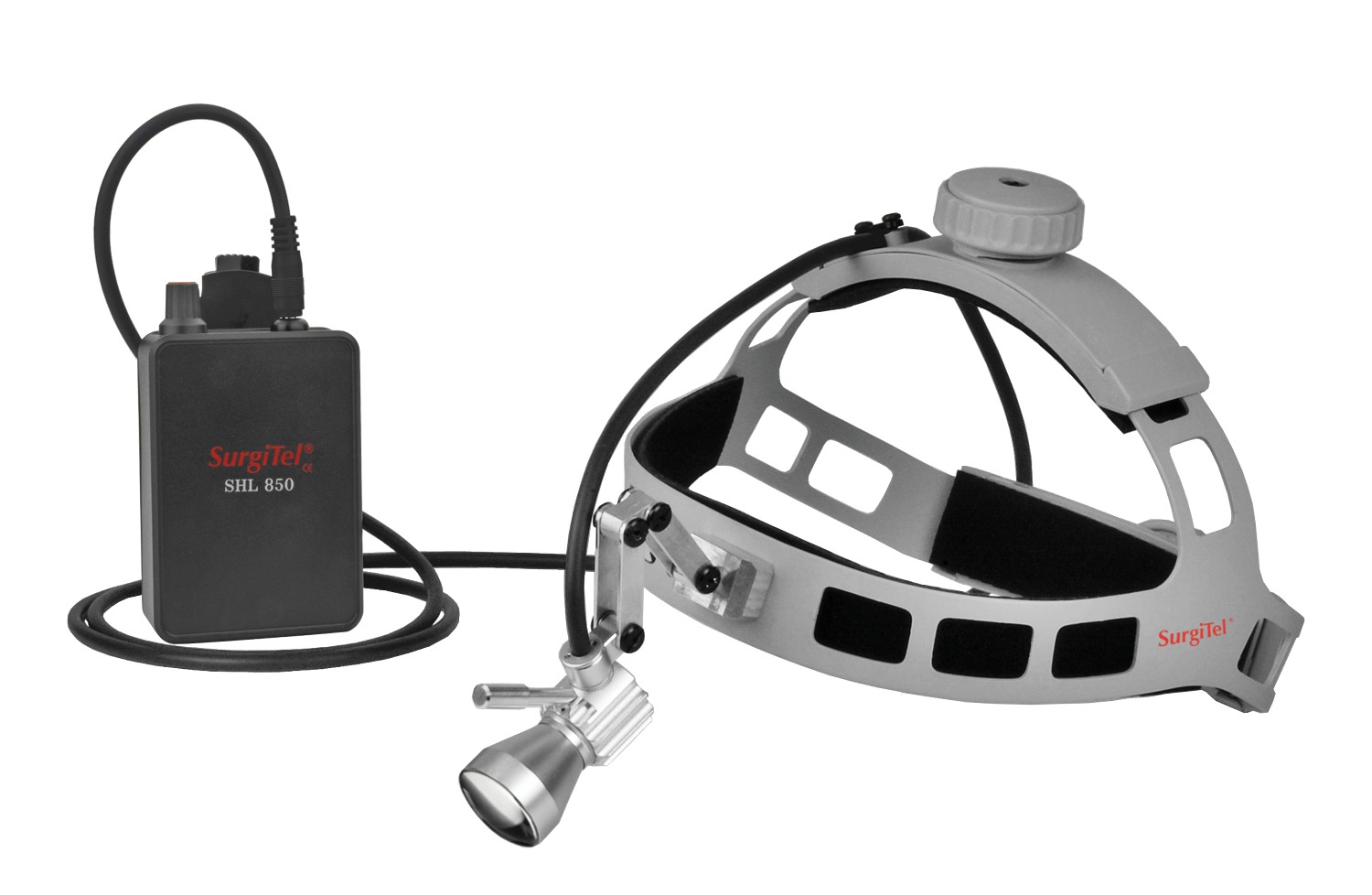

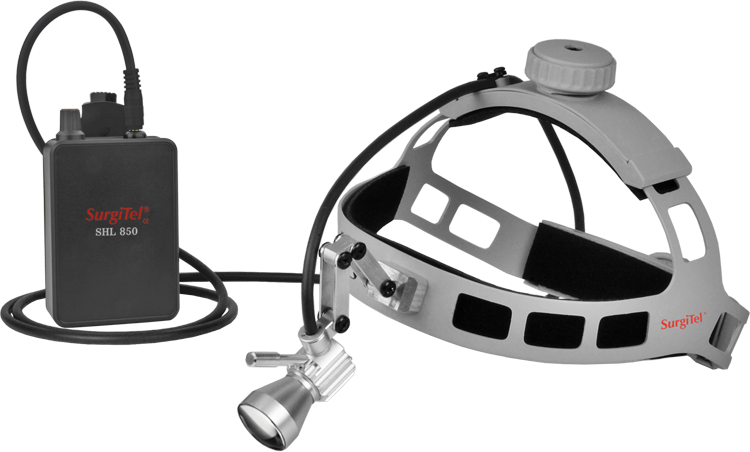

Surgical Headband LED 2.0

The Surgical Headband LED 2.0 is a modern update of the traditional surgical headlight used in many hospital environments. Loupe or Headband style mounting is available.

The Surgical Headband LED 2.0 combines the power of traditional surgical headlights with the color balance and uniformity of advanced LED technology and boasts an increased brightness and battery life over the Surgical Headband LED 1.0.

  • Brightness average is about 120,000 Lux
  • Up to 12 hours of battery life with advanced battery technology
  • Replaceable battery cells for low maintenance costs
  • 6,500 Kelvin temperature helps to enhance anatomical features
  • Uniform beam with multi-lens optics (patented)
  • Polarizing filters also available to reduce glare
  • No color change over the working distance range
  • The heatsink around the LED body promotes effective heat dissipation

Surgical LED 2.0 Specs

Brightness (average): 120,000 Lux
Spot Size (at 20″): 4″ (10.2cm) Diameter
Battery Life: Up to 12 hours at max brightness
LED Life (average): Over 20,000 hours or over 10 years
Color Temperature: 6,500K (cool)

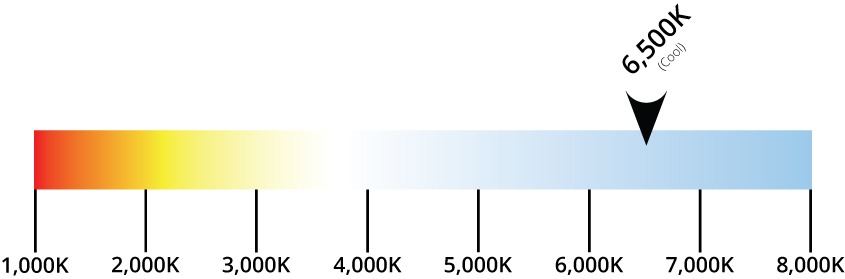

Kelvin Temperature Scale

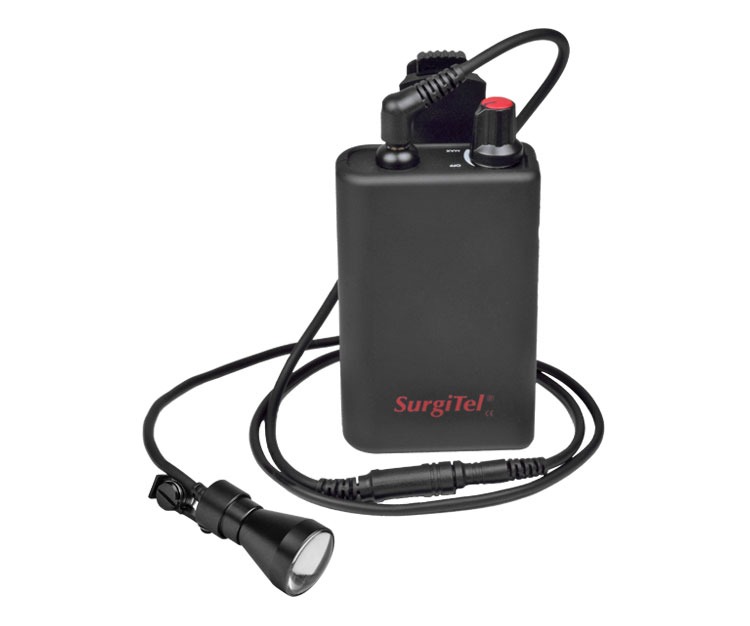

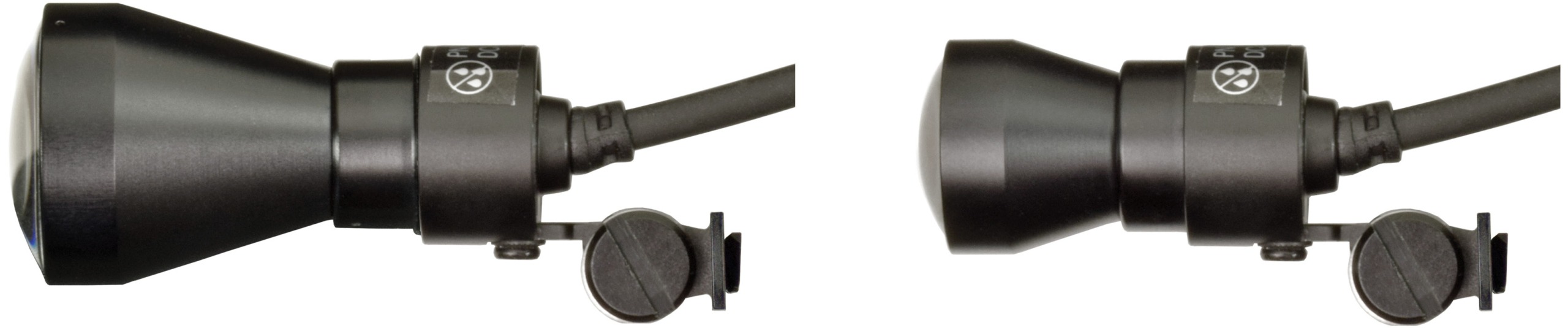

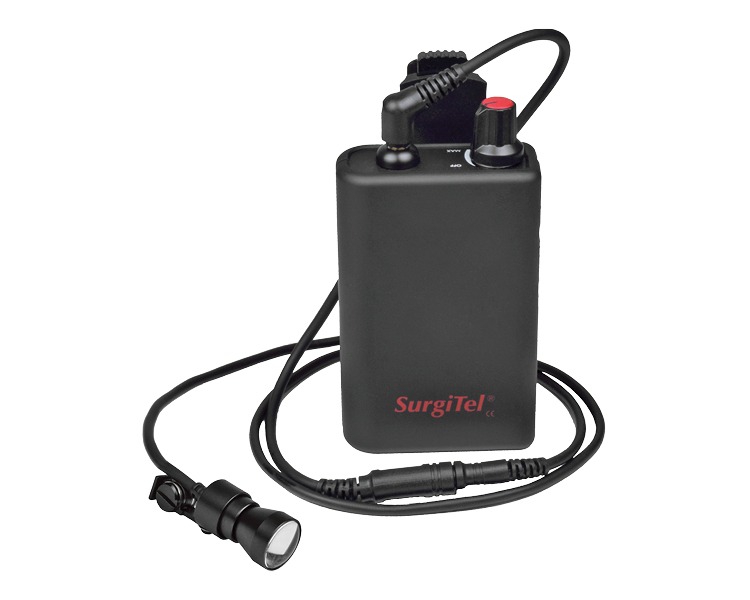

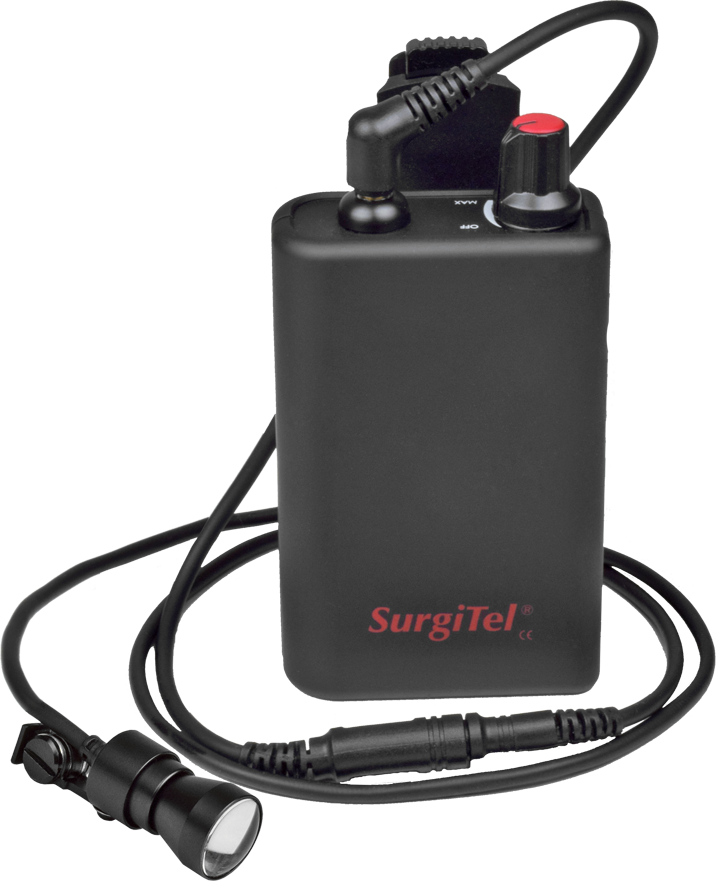

Odyssey Mini LED and Odyssey Micro LED

SurgiTel’s lightest & smallest LED light system ever! Applying advanced technology for ergonomics, battery life, optics and LED, SurgiTel’s Micro LED headlight creates a new level of comfort and light efficiency.

The High Intensity Mini LED is designed to be a compact, portable, high-intensity light system that seamlessly integrates with our award-winning loupes. By combining SurgiTel’s ErgoVision HD loupe technology with the brightest 3 Watt LED available, the Mini delivers a powerful and precisely defined light beam.

  • Uniform beam with multi-lenses optics (patented)
  • Runs for up to 8 hours on one battery charge
  • Three light color options: warm, neutral, and cool
  • The Odyssey Micro is so small and light you’ll forget you have it on
  • Replaceable battery cells for low maintenance costs
  • Orange curing filter is included with Micro optic and is available upon request with the Mini optic

Odyssey Mini LED & Odyssey Micro LED Specs

Brightness (average): 70,000 Lux (Mini) | 45,000 Lux (Micro)
Spot Size (at 20″): 4.5″ (11.4cm) Diameter (Mini)
5.25″ (13.3cm) Diameter (Micro)
Battery Life: Up to 8 hours at max brightness
LED Life (average): 10,000 hours or 2-3 years
Color Temperature: 3,000K (warm) | 4,000K (neutral) | 5,700K (cool)

Kelvin Temperature Scale

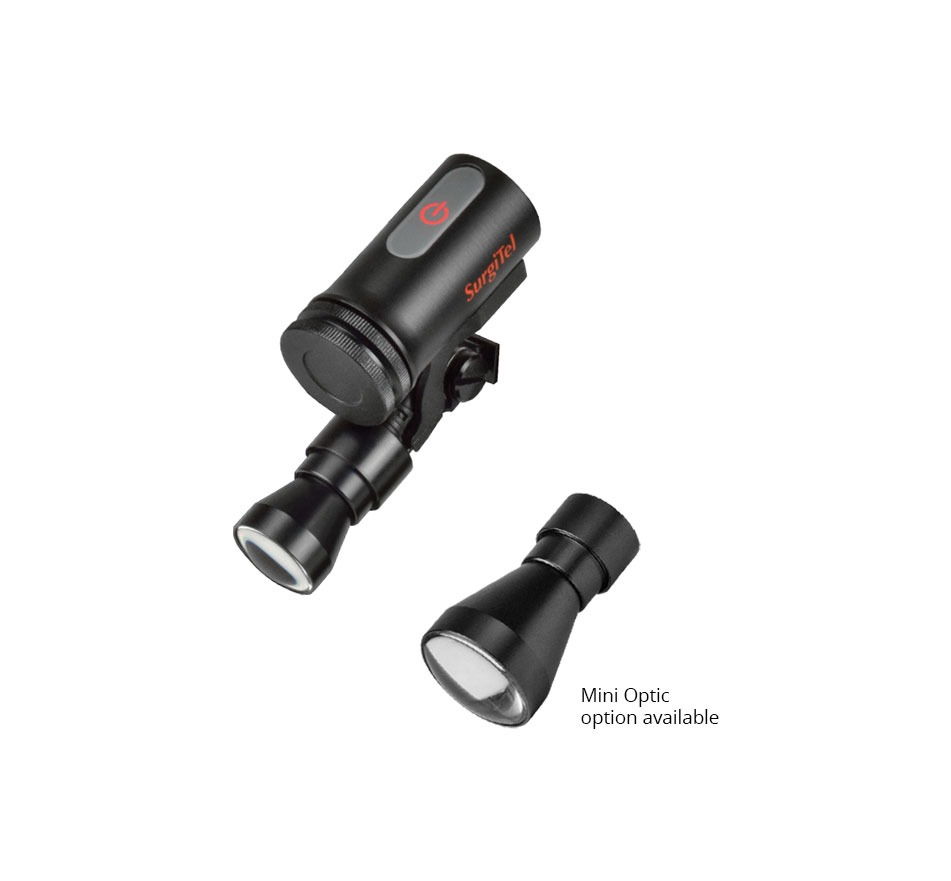

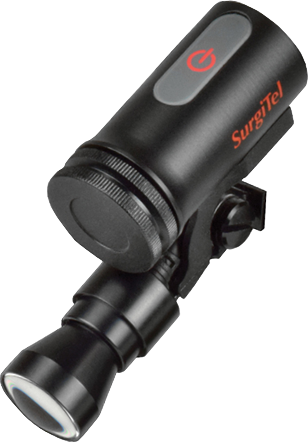

Wireless Air LED

Built using SurgiTel’s proprietary achromatic beam. This wireless headlight for loupes creates a clear, even light that is easy on the eyes.

Your choice of neutral or cool color beams. Neutral color is ideal for cosmetic work and reduces risk from blue light.

  • SurgiTel’s lightest weight LED ever
  • Self-contained / portable
  • Clear, even beam with a distinct edge
  • Your choice of neutral or cool color beams to adapt to your work
  • Advanced lithium battery for consistent light output
  • Excellent color rendering
  • Adaptable to other loupes, frames, or headbands
  • Orange curing filter is included with Micro optic and is available upon request with the Mini optic

Wireless Air LED Specs

Brightness (average): 37,600 Lux (Mini) | 22,600 Lux (Micro)
Spot Size (at 20″): 4.5″ (11.43m) Diameter (Mini)
5.25″ (13.3cm) Diameter (Micro)
Battery Life with 3 batteries: Up to 4 hours (about 1 hour 20 minutes per battery)
LED Life (average): Over 10,000 hours or 2-3 years
Color Temperature:  4,000K (neutral) | 5,700K (cool)

Kelvin Temperature Scale

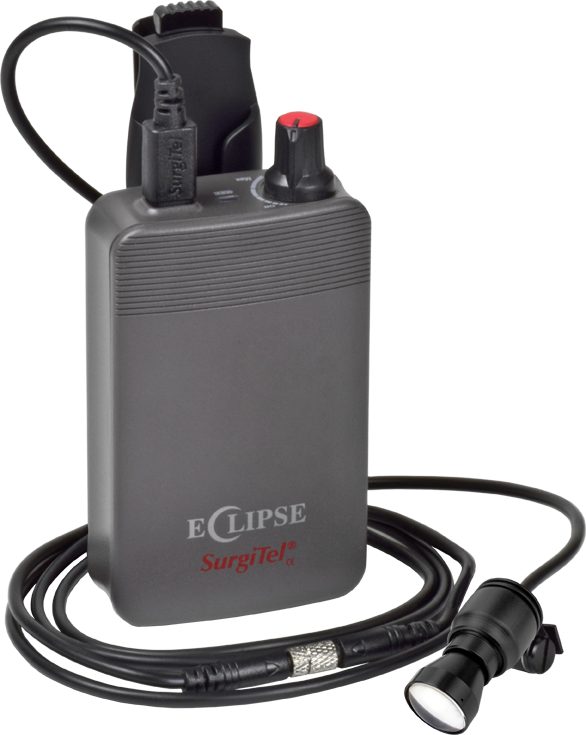

Eclipse CS Touchless Headlight

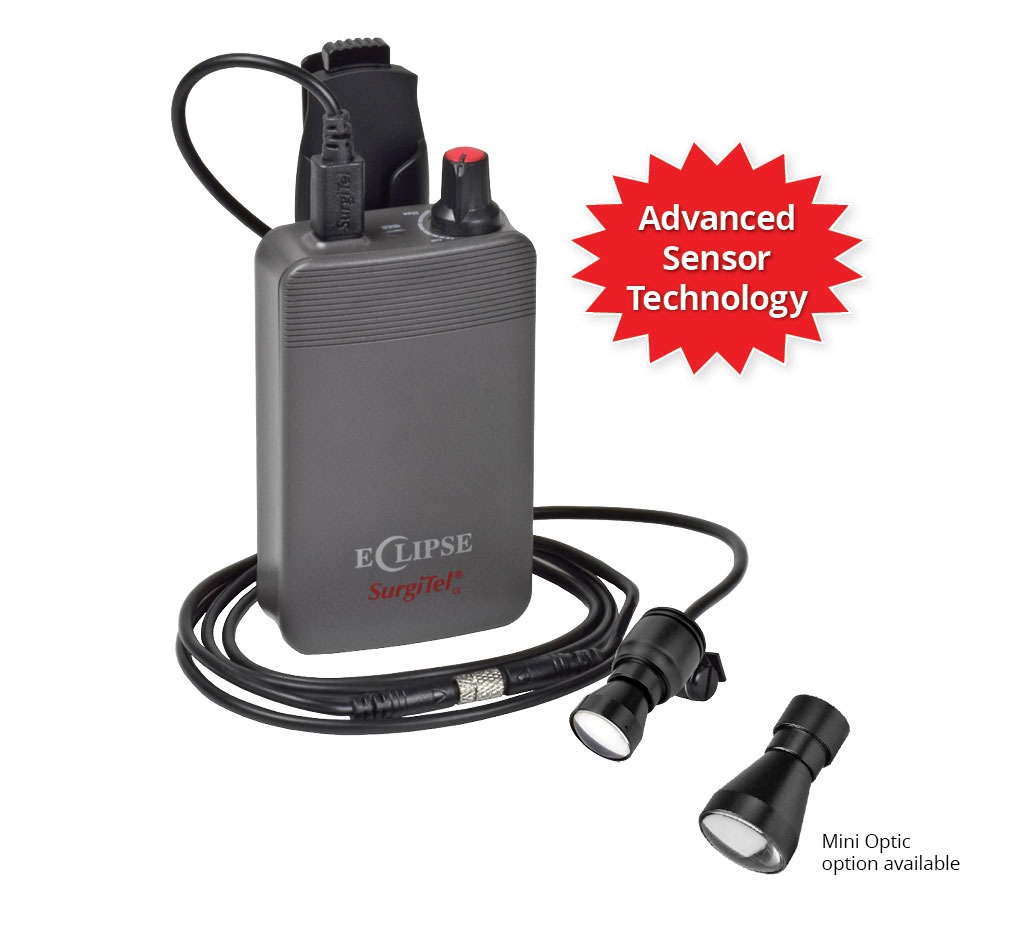

Eclipse CS LED

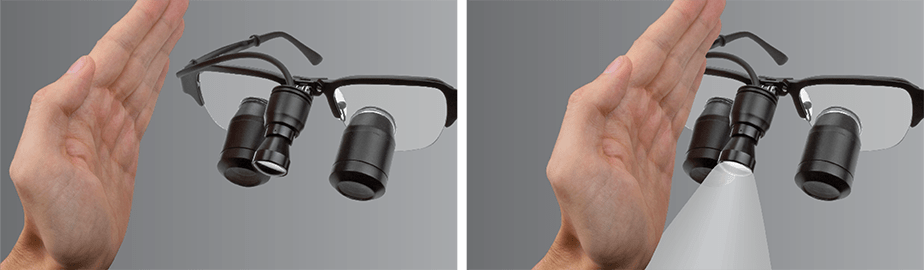

The truly touch-free Eclipse CS LED light uses an advanced capacitive proximity sensor: the light turns on and off by placing a hand close to the light in any direction. This technology can eliminate potential cross-contamination through the touching of battery packs or switches.

Comfortably wave the light off when finished with a patient, move around the office, and simply wave it on for the next patient. Nothing has touched your loupes or batteries in-between. Turn your light off easily and be able to speak to your patients without blinding them. Easier switching also extends battery life and the life of the product.

  • Motion-activated, truly touch-free
  • Avoids the risk of cross-contamination
  • Consult without blinding the patient or assistant
  • Easy switching conserves battery life
  • Orange curing filter is included with Micro optic and is available upon request with the Mini optic
  • Battery charge level indicator light
  • Replaceable battery cells for low maintenance costs

Eclipse CS LED Instructional Video

Eclipse CS LED Specs

Brightness (average): 60,000 Lux (Mini) | 45,000 Lux (Micro)
Spot Size (at 20″): 4.5″ (11.43m) Diameter (Mini)
5.25″ (13.3cm) Diameter (Micro)
Battery Life: Up to 6 hours at max brightness
LED Life (average): 10,000 hours or 2-3 years
Color Temperature: 4,000K (neutral) | 5,700K (cool)

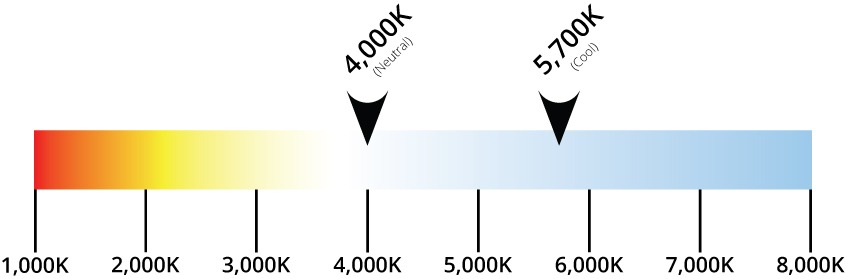

Kelvin Temperature Scale


Clinicians Love SurgiTel

Clinicians everywhere see the SurgiTel Advantage.

photo of male

“I commend SurgiTel for recognizing the potential retinal hazard from using very bright ‘cool white light’ LEDs. They have also taken steps to reduce the most dangerous blue light emission at 445 nm from the LEDs in their headlamps. I recommend that clinicians ask the manufacturers of LED headlamps and LED operatory lights to provide the spectral emission from their light source, not just the brightness or intensity of the light.”

Clinicians Love SurgiTel

Clinicians everywhere see the SurgiTel Advantage.

photo of male

“I commend SurgiTel for recognizing the potential retinal hazard from using very bright ‘cool white light’ LEDs. They have also taken steps to reduce the most dangerous blue light emission at 445 nm from the LEDs in their headlamps. I recommend that clinicians ask the manufacturers of LED headlamps and LED operatory lights to provide the spectral emission from their light source, not just the brightness or intensity of the light.”

Clinicians Love SurgiTel

Clinicians everywhere see the SurgiTel Advantage.

“I commend SurgiTel for recognizing the potential retinal hazard from using very bright ‘cool white light’ LEDs. They have also taken steps to reduce the most dangerous blue light emission at 445 nm from the LEDs in their headlamps. I recommend that clinicians ask the manufacturers of LED headlamps and LED operatory lights to provide the spectral emission from their light source, not just the brightness or intensity of the light.”

photo of male

Ergo Vision Headlights

Blue light is not healthy yet many clinicians are using blue-tinted LEDs, even though they were advertised as true color.

Third party evaluations have determined SurgiTel LEDs have the safest color temperate starting at 3,000 Kelvin(K) while other brands range from 5,400K to 10,000K.

Other benefits of Eye Safe, True Colored dental lights and surgical lights include minimized eye-strain and best color accuracy.

Read Our Articles on LED Headlights

SurgiTel | LED Headlights | Dental Loupes with Light | Surgical Headlight

Ergo Vision Headlights

Blue light is not healthy yet many clinicians are using blue-tinted LEDs, even though they were advertised as true color.

Third party evaluations have determined SurgiTel LEDs have the safest color temperate starting at 3,000 Kelvin(K) while other brands range from 5,400K to 10,000K.

Other benefits of Eye Safe, True Colored dental lights and surgical lights include minimized eye-strain and best color accuracy.

Read Our Articles on LED Headlights

SurgiTel | LED Headlights | Dental Loupes with Light | Surgical Headlight

Benefits of our Headlights

  • Superior edge to edge beam uniformity and color accuracy
  • Patented optics create superior beam quality
  • Color options to adapt to your work
  • Smallest and lightest LED headlight
  • Lithium battery pack provides light for 8 hours with the Odyssey LED headlights and up to 12 hours with the Surgical LED at max brightness
  • Adjustable brightness knob
  • Fits on SurgiTel and other telescopes, frames, or headbands
  • Optimal color balance provides true colors and reduces eye strain
  • Coaxial design produces shadowless work space

Click here to read the Clinician Report about the SurgiTel Cordless Headlight.

Benefits of our Headlights

  • Superior edge to edge beam uniformity and color accuracy
  • Patented optics create superior beam quality
  • Color options to adapt to your work
  • Smallest and lightest LED headlight
  • Lithium battery pack provides light for 8 hours with the Odyssey LED headlights and up to 12 hours with the Surgical LED at max brightness
  • Adjustable brightness knob
  • Fits on SurgiTel and other telescopes, frames, or headbands
  • Optimal color balance provides true colors and reduces eye strain
  • Coaxial design produces shadowless work space

Click here to read the Clinician Report about the SurgiTel Cordless Headlight.
