Product Overview
SurgiTel Ergo IQ™ is an advanced ergonomic loupe system designed to promote healthier posture, exceptional optical clarity, and all-day clinical comfort. Its compact, low-profile design minimizes visual distraction while allowing many clinicians to easily view their surroundings without removing their loupes. Available in 3.0x, 3.5x, 4.5x, and 5.5x magnifications, the Ergo IQ features crisp, vivid optics, an optimized field of view and depth of field, patented adjustable working distance caps, and patented Ergo Fit Nose Pads for a personalized fit. Designed for dental and surgical professionals, the Ergo IQ helps improve comfort, efficiency, and focus throughout the workday.
- Designed to enhance workflow efficiency and clinical flow.
- Available in 3.0x, 3.5x, 4.5x, and 5.5x magnifications.
- Large field of view with edge-to-edge clarity, optimized for a relaxed working posture.
- Minimal ocular footprint to reduce visual distraction.
- Compatible with select SurgiTel, Oakley®, and Nike® frames.
- Patent pending deflection prism.
- Pantoscopic tilted frames provide optimal eye protection.
- Working distance caps help to save on long-term maintenance costs and downtime from reading Rx changes.
- Highest-grade optical glass and materials.
- Multi-layer anti-reflective coatings.
Field of View by Working Distance
| Magnification | Working Distance | Field of View |
|---|---|---|
| 3.0x | 24″ (61.0 cm) | 18.0 cm (7.1″) |
| 3.0x | 21″ (53.3 cm) | 15.8 cm (6.2″) |
| 3.0x | 18″ (45.7 cm) | 13.5 cm (5.3″) |
| 3.0x | 15″ (38.1 cm) | 11.3 cm (4.4″) |
| 3.5x | 24″ (61.0 cm) | 13.3 cm (5.2″) |
| 3.5x | 21″ (53.3 cm) | 11.7 cm (4.6″) |
| 3.5x | 18″ (45.7 cm) | 10.0 cm (3.9″) |
| 3.5x | 15″ (38.1 cm) | 8.3 cm (3.3″) |
| 4.5x | 24″ (61.0 cm) | 10.0 cm (3.9″) |
| 4.5x | 21″ (53.3 cm) | 8.8 cm (3.5″) |
| 4.5x | 18″ (45.7 cm) | 7.5 cm (3.0″) |
| 4.5x | 15″ (38.1 cm) | 6.3 cm (2.5″) |
| 5.5x | 24″ (61.0 cm) | 7.2 cm (2.9″) |
| 5.5x | 21″ (53.3 cm) | 6.3 cm (2.5″) |
| 5.5x | 18″ (45.7 cm) | 5.4 cm (2.1″) |
| 5.5x | 15″ (38.1 cm) | 4.5 cm (1.8″) |
Field of view varies with working distance. The values shown represent selected reference distances and are intended as a guide. Additional working distances are available. Achievable depth of field varies with individual eye accommodation.
Available Ocular Finishes
| Magnification | Available Finishes |
|---|---|

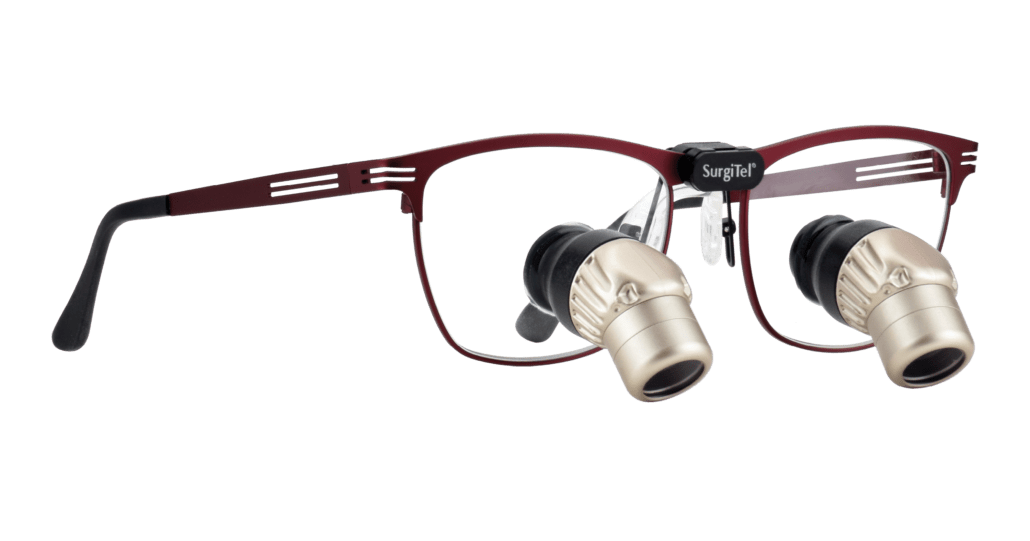

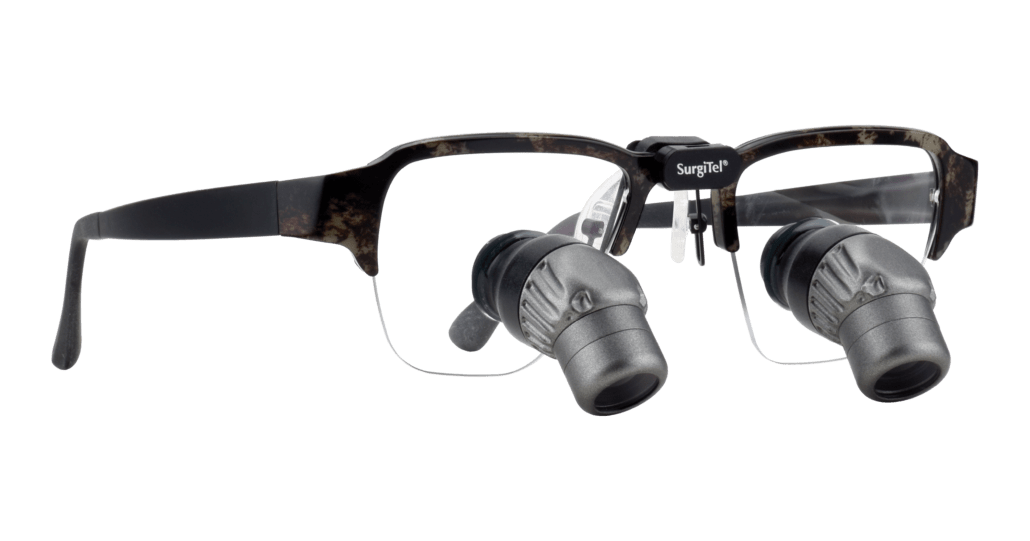

| 3.0x | Dark Grey, Champagne Gold |

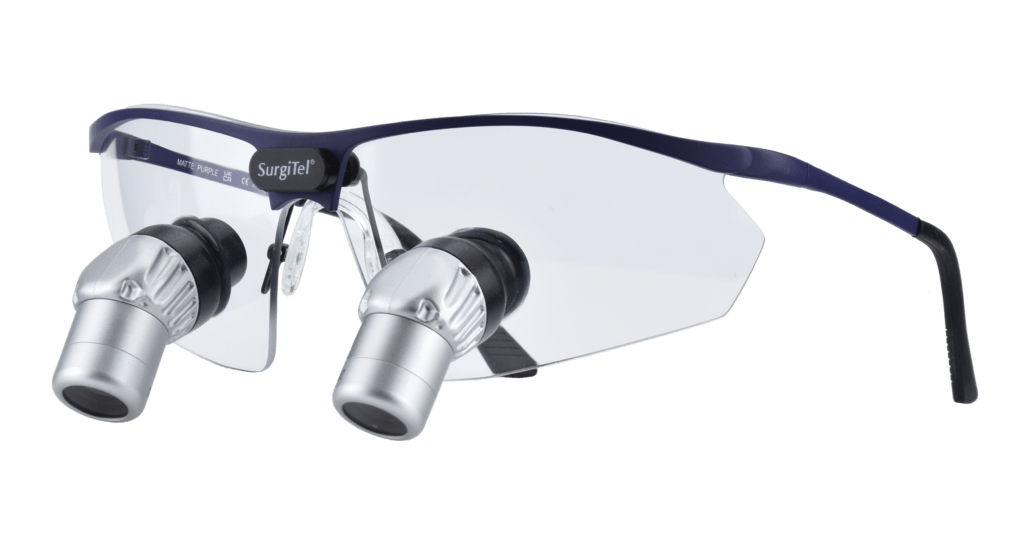

| 3.5x | Dark Grey, Silver, Champagne Gold |
| 4.5x | Dark Grey, Silver, Champagne Gold |

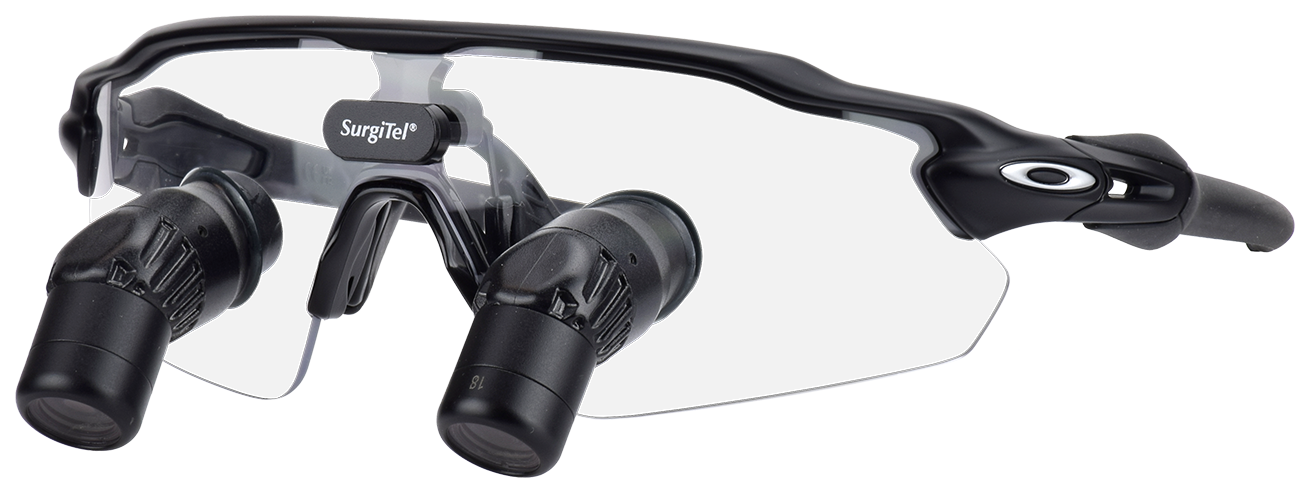

| 5.5x | Black |
