Product Overview
ErgoDeflection™ Loupes are designed for clinicians who want the benefits of ergonomic magnification with a personalized fit. Unlike fixed-angle ergonomic loupes, SurgiTel’s patent-pending customizable deflection prism allows the viewing angle to be tailored to the clinician’s posture and working style. Combined with premium prism optics, exceptional image clarity, and SurgiTel’s patented working distance caps, ErgoDeflection delivers outstanding optical performance while helping reduce neck strain during long clinical procedures.

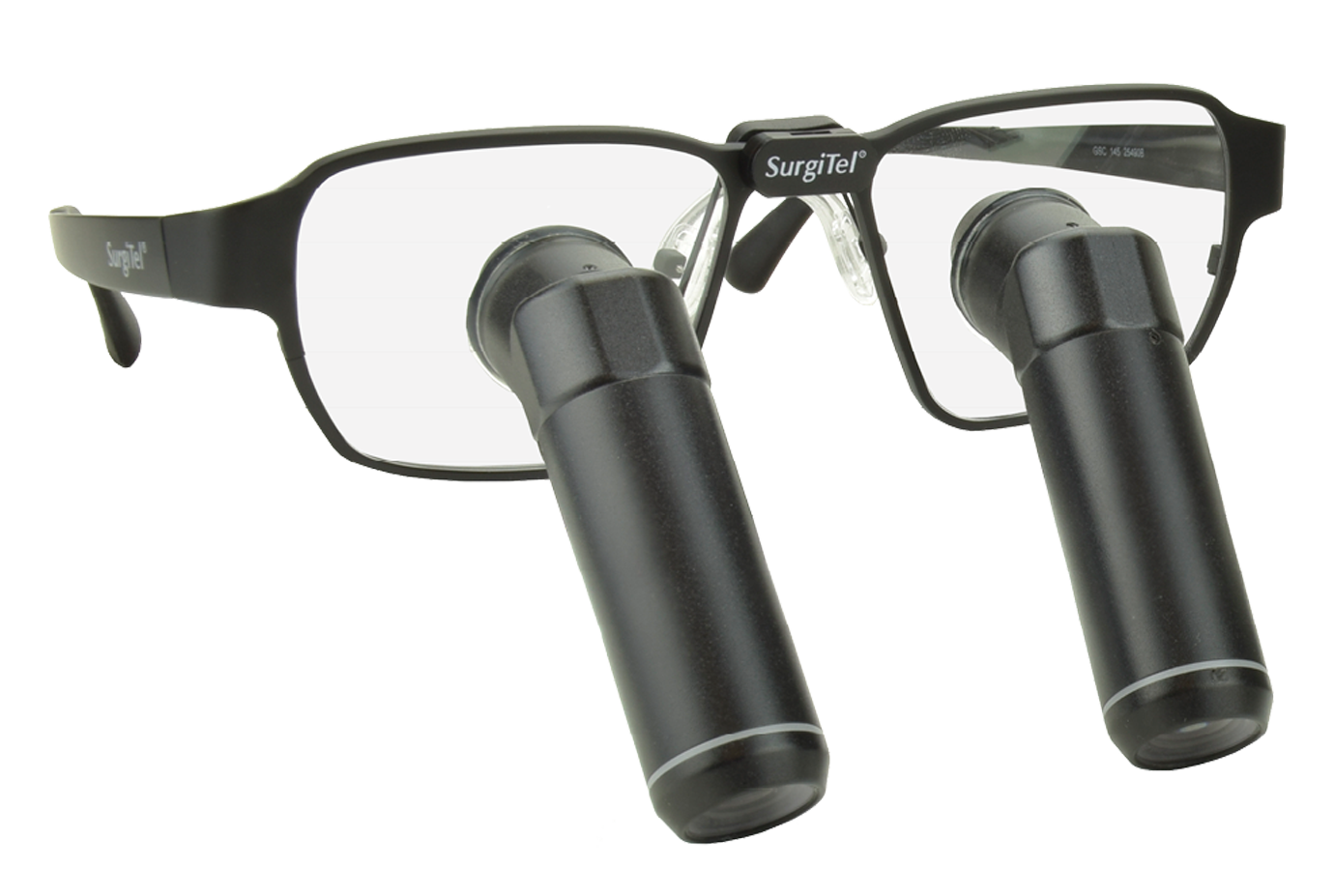

- ErgoDeflection™ TTL Magnifications are available in 6.5x, 8.5x, and 10.5x on select frames.
- Patent pending deflection prism.
- Wide area of direct viewing below oculars to work area.
- Pantoscopic tilted frames provide optimal eye protection.
- Working distance caps help to save on long-term maintenance costs and downtime from reading Rx changes.
- Highest-grade optical glass and materials.
- Multi-layer anti-reflective coatings.
Field of View by Working Distance
| Magnification | Working distance | Field of view |
|---|---|---|
| 6.5x | 24″ (61.0 cm) | 5.9 cm (2.3″) |
| 6.5x | 21″ (53.3 cm) | 5.1 cm (2.0″) |
| 6.5x | 18″ (45.7 cm) | 4.4 cm (1.7″) |
| 6.5x | 15″ (38.1 cm) | 3.7 cm (1.5″) |
| 8.5x | 24″ (61.0 cm) | 4.7 cm (1.9″) |
| 8.5x | 21″ (53.3 cm) | 4.1 cm (1.6″) |
| 8.5x | 18″ (45.7 cm) | 3.5 cm (1.4″) |
| 8.5x | 15″ (38.1 cm) | 2.9 cm (1.1″) |
| 10.5x | 24″ (61.0 cm) | 4.0 cm (1.6″) |
| 10.5x | 21″ (53.3 cm) | 3.5 cm (1.4″) |
| 10.5x | 18″ (45.7 cm) | 3.0 cm (1.2″) |
| 10.5x | 15″ (38.1 cm) | 2.5 cm (1.0″) |
Field of view varies with working distance. The values shown represent selected reference distances and are intended as a guide. Additional working distances are available. Achievable depth of field varies with individual eye accommodation.
