Product Overview
The UltiView™ Lite and UltiView™ represent SurgiTel’s compact prism loupe platform, delivering outstanding image quality in a lightweight, ergonomic package. Featuring premium optical glass, multi-layer anti-reflective coatings, and SurgiTel’s patented optical technologies, these loupes provide bright, sharp images with a generous field of view and extended depth of field comparable to conventional Galilean designs. With magnifications ranging from 3.0x to 4.5x, the UltiView family is ideal for clinicians seeking professional-level optical performance without the size and weight of larger prism systems.

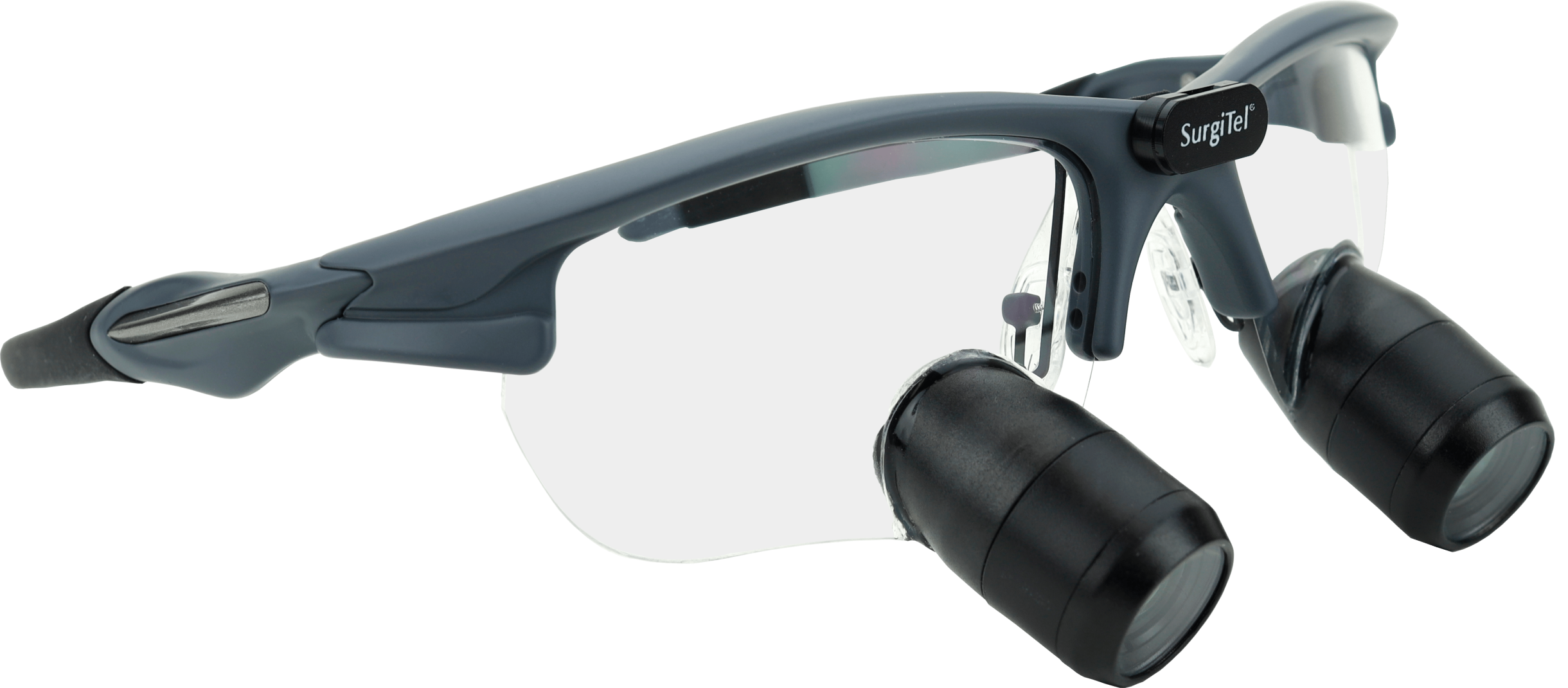

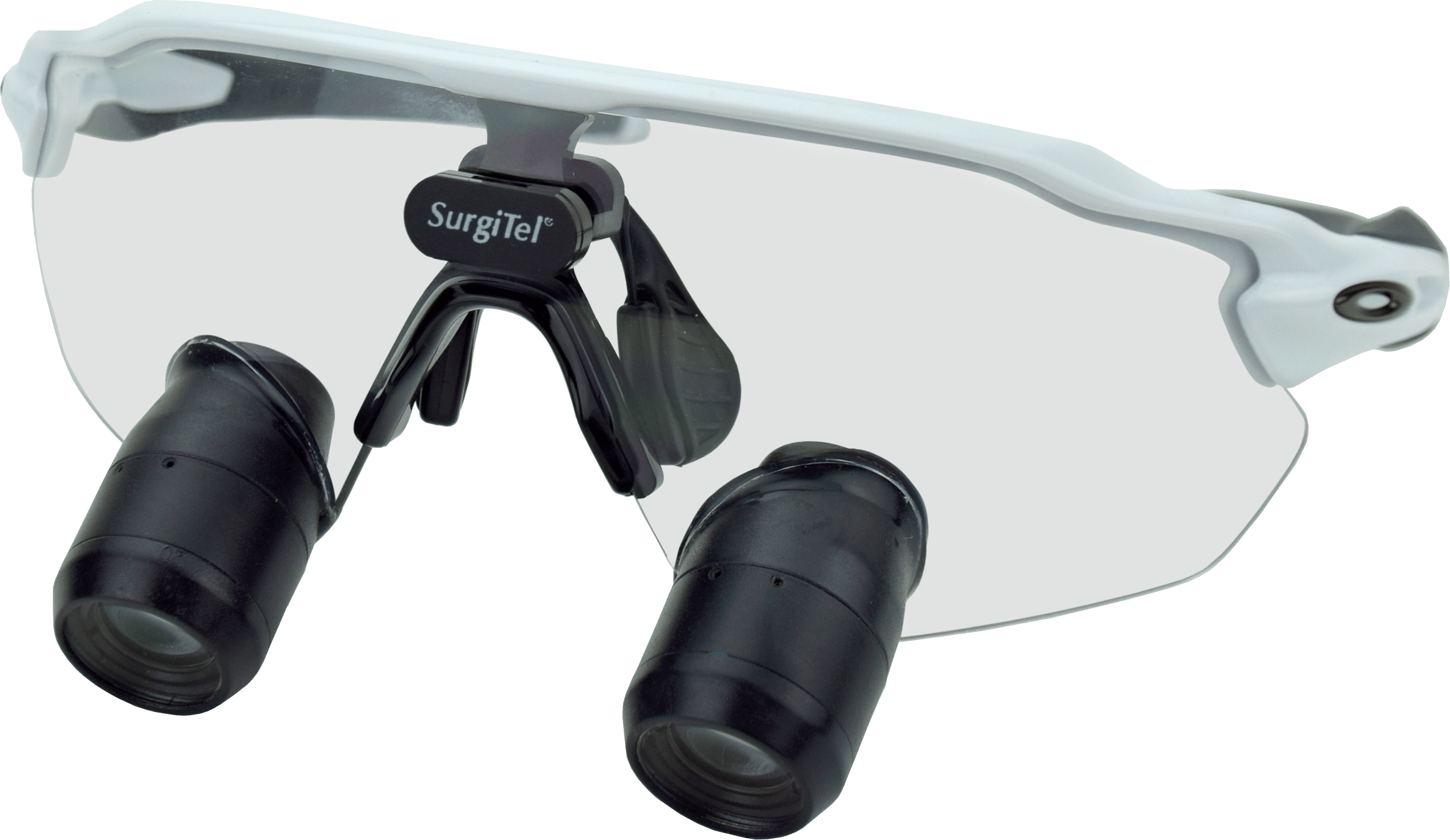

- Three magnification options: 3.0x (UltiView Lite), 3.5x (UltiView), and 4.5x (UltiView).
- Taking the advances of previous generation prism loupes and concentrating them into an optimal compact size and lighter weight ocular.
- Precision optics with true ergonomics at an economical price with low maintenance costs.
- Available in both TTL and FLM mounting options.
- Versatile oculars with a generous field of view and extended depth of field comparable to Galilean loupes.
- Patented interchangeable working distance caps can help you adjust the working distance precisely and also allow you to easily update your reading Rx.
- Highest grade optical glass and materials.
- Multi-layer anti-reflective coatings.
Field of View by Working Distance
| Magnification | Working Distance | Field of View |
|---|---|---|
| UltiView Lite — 3.0x | ||
| 3.0x | 24 in. (61.0 cm) | 10.7 cm (4.2″) |
| 3.0x | 21 in. (53.3 cm) | 9.4 cm (3.7″) |
| 3.0x | 18 in. (45.7 cm) | 8.0 cm (3.1″) |
| 3.0x | 15 in. (38.1 cm) | 6.7 cm (2.6″) |
| UltiView — 3.5x | ||
| 3.5x | 24 in. (61.0 cm) | 9.4 cm (3.7″) |
| 3.5x | 21 in. (53.3 cm) | 8.3 cm (3.3″) |
| 3.5x | 18 in. (45.7 cm) | 7.0 cm (2.8″) |
| 3.5x | 15 in. (38.1 cm) | 5.9 cm (2.3″) |
| UltiView — 4.5x | ||
| 4.5x | 24 in. (61.0 cm) | 8.0 cm (3.1″) |
| 4.5x | 21 in. (53.3 cm) | 7.0 cm (2.8″) |
| 4.5x | 18 in. (45.7 cm) | 6.0 cm (2.4″) |
| 4.5x | 15 in. (38.1 cm) | 5.0 cm (2.0″) |
Field of view varies with working distance. The values shown represent selected reference distances and are intended as a guide. Additional working distances are available. Achievable depth of field varies with individual eye accommodation.
